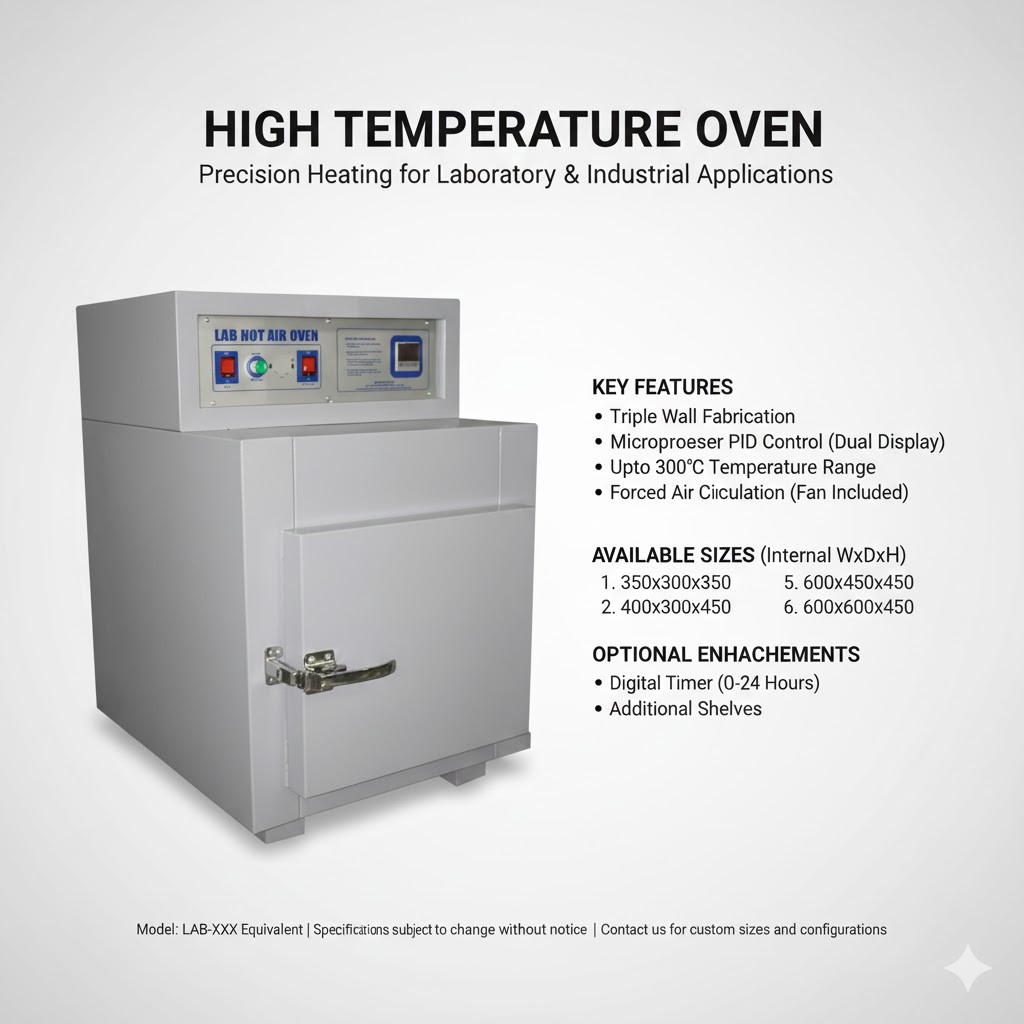

This robustly designed High Temperature Oven is ideal for applications requiring temperatures up to 300°C, such as high-heat aging, curing, drying, and general thermal testing in industrial and laboratory settings.
Technical Specifications
| Feature | Detail |
| Temperature Range | Ambient to 300°C |
| Temperature Control | Dual Display Microprocessor PID Digital Temperature Indicator cum Controller |
| Construction | Triple Wall Fabrication |
| Inner Chamber | Mild Steel or Highly Polished Stainless Steel Sheet (as per choice) |
| Exterior | Thick Mild Steel sheet, finished with White Powder Coating or other color combinations |
| Insulation | Special grade Glass Wool fitted between the walls for maximum heat retention |
| Air Circulation | Provided with One Air Circulation Fan for temperature uniformity |
| Shelves | Supplied with two or three removable shelves |
| Door | Special elegant door closing device |
| Power Supply | 220V AC, 50Hz, Single Phase |
Control Panel Features
The user-friendly control panel includes:
Temperature Controller: Dual Display Microprocessor PID Digital Controller.
Power Selector Switch: Allows selection of High or Low rates of power for efficient heating and energy management.
Indicators: Mains Power and Heat Indicators.
Connectivity: Supplied complete with plug and chord.
Available Chamber Sizes (Internal Dimensions: Width x Depth x Height in mm)
| Option No. | Size (W x D x H) | Capacity (Approx.) |
| 1 | 300 x 300 x 300 mm | 27 Liters |
| 2 | 350 x 350 x 350 mm | 43 Liters |
| 3 | 400 x 400 x 400 mm | 64 Liters |
| 4 | 450 x 450 x 450 mm | 91 Liters |
| 5 | 600 x 450 x 450 mm | 121 Liters |
| 6 | 600 x 600 x 600 mm | 216 Liters |
Optional Enhancement
Digital Timer: Add a 0-24 hour digital timer for set-and-forget operational cycles.
