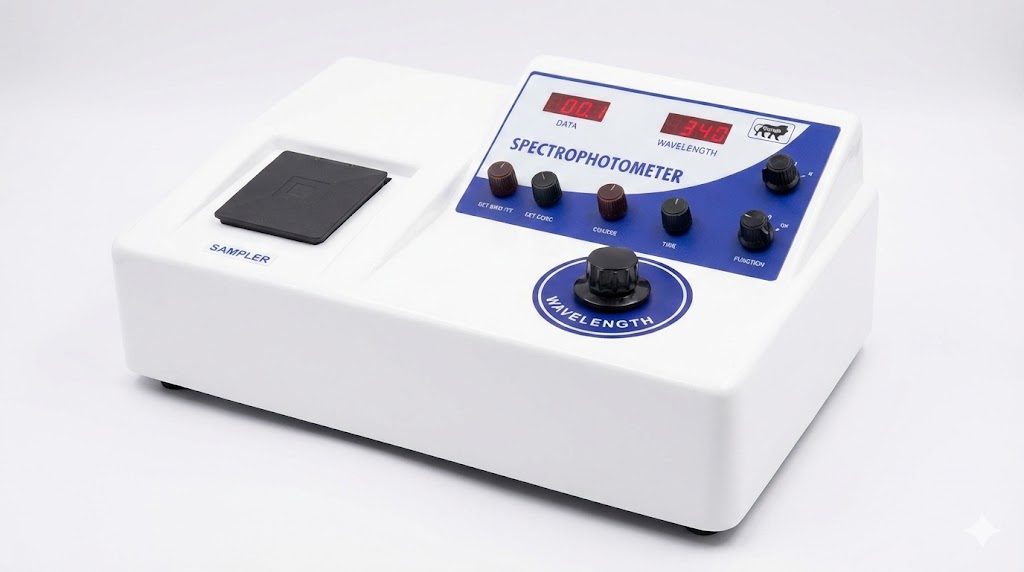

Digital Spectrophotometer (340–960nm) | High-Precision Lab Analyzer

The Digital Spectrophotometer is a compact, high-performance analytical instrument designed for rapid and accurate concentration analysis of various solutions. Featuring a high-resolution holographic grating monochromator, it provides precise measurements across the visible and near-infrared spectrum. This versatile unit delivers direct digital readouts in Absorbance (Abs), Percentage Transmission (%T), and Concentration (C), making it an essential tool for chemical, clinical, and environmental laboratories.

Key Features

• Wide Spectral Range: Operates from 340nm to 960nm, covering the entire visible spectrum and part of the UV/NIR range.

• Advanced Optical System: Utilizes a 600 lines/nm holographic grating and a sensitive silicon photodiode for superior wavelength accuracy and stability.

• Dual Digital Display: Equipped with a 3½ digit bright red LED display that simultaneously shows data and wavelength for streamlined operation.

• High Sensitivity & Precision: Achieve professional results with a 0.001 Abs resolution and a narrow 5nm spectral bandwidth.

• Durable Light Source: Powered by a long-lasting 6V, 10W Tungsten Halogen lamp to ensure consistent light intensity during long testing sessions.

Technical Specifications

Standard Accessories Included

• 2x Glass Cuvettes (10 mm)

• 1x Protective Dust Cover

• 1x Comprehensive Operational Manual

• Note: 50mm and 100mm cuvettes are available as optional upgrades for low-concentration samples.
