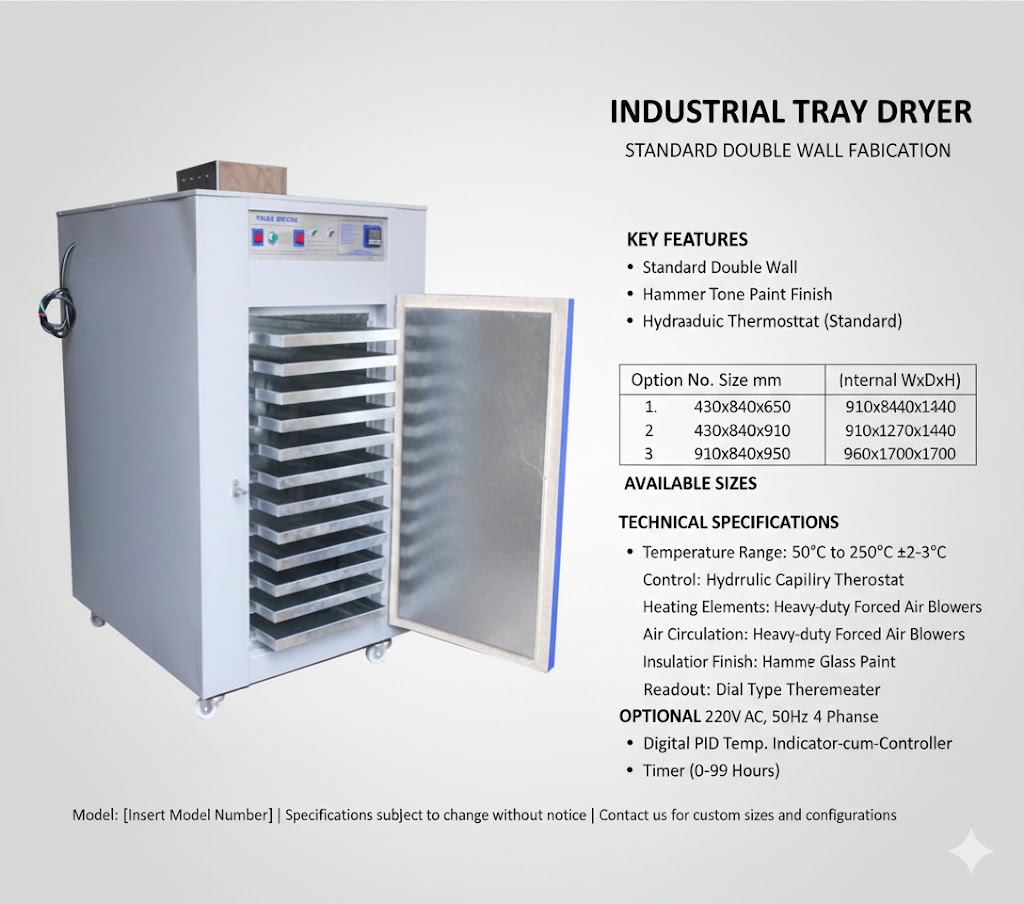

Tray Dryer
Tray Dryer is designed for efficient and uniform drying of products in trays, suitable for applications in pharmaceutical, food, chemical, and industrial laboratories.
Technical Specifications
| Feature | Detail |
| Temperature Range | 50°C to 250°C |
| Temperature Control | Hydraulic Type Capillary Thermostat (Standard) |
| Temperature Variation | 2°C to 3°C |
| Fabrication | Standard Double Wall |
| Inner & Outer Chamber | Thick Mild Steel Sheet |
| Exterior Finish | Painted with Hammer Tone Paint Finish |
| Insulation | Special Grade Glass Wool fitted between the walls |
| Heating Elements | Kanthal Wire for quick and uniform heating |
| Air Circulation | Heavy-duty Forced Air Blowers to constantly circulate hot air for uniformity |
| Temperature Readout | Fitted with a Dial Type Thermometer for chamber temperature reading |
| Power Supply | 220V AC, 50Hz, Single Phase |
Available Working Chamber Sizes (Internal Dimensions: Width x Depth x Height in mm)
| Option No. | Size (W x D x H) | Typical Tray Capacity (Approx.) |
| 1 | 430 x 840 x 650 mm | Small/Pilot Scale |
| 2 | 430 x 840 x 910 mm | Small/Pilot Scale |
| 3 | 910 x 840 x 910 mm | Standard |
| 4 | 960 x 1270 x 1440 mm | Medium Industrial |
| 5 | 960 x 1700 x 1700 mm | Large Industrial |
Available Working Chamber Sizes (Internal Dimensions: Width x Depth x Height in mm)
| Option No. | Size (W x D x H) | Typical Tray Capacity (Approx.) |
| 1 | 430 x 840 x 650 mm | Small/Pilot Scale |
| 2 | 430 x 840 x 910 mm | Small/Pilot Scale |
| 3 | 910 x 840 x 910 mm | Standard |
| 4 | 960 x 1270 x 1440 mm | Medium Industrial |
| 5 | 960 x 1700 x 1700 mm | Large Industrial |
Optional Enhancements
Digital PID Temperature Indicator-cum-Controller: Replaces the standard thermostat for highly accurate and precise digital temperature control.
Timer (0-99 hours): Enables automated
batch processing and scheduled shutdown after a preset time.
