Student Dissection Microscope (Stereo Microscope) — Apex Labs

The Apex Labs Student Dissection Microscope (Stereo Microscope) is an essential tool for biology students and young researchers exploring the three-dimensional world. Unlike standard compound microscopes, this dissection model is designed for observing whole, opaque specimens like insects, plants, minerals, and fossils. With its generous working distance and upright 3D image, it allows users to perform delicate dissection work or manipulate samples in real-time with forceps and needles. Built for the classroom and laboratory, it features a robust, stable design that withstands daily use while providing crisp, clear magnification.

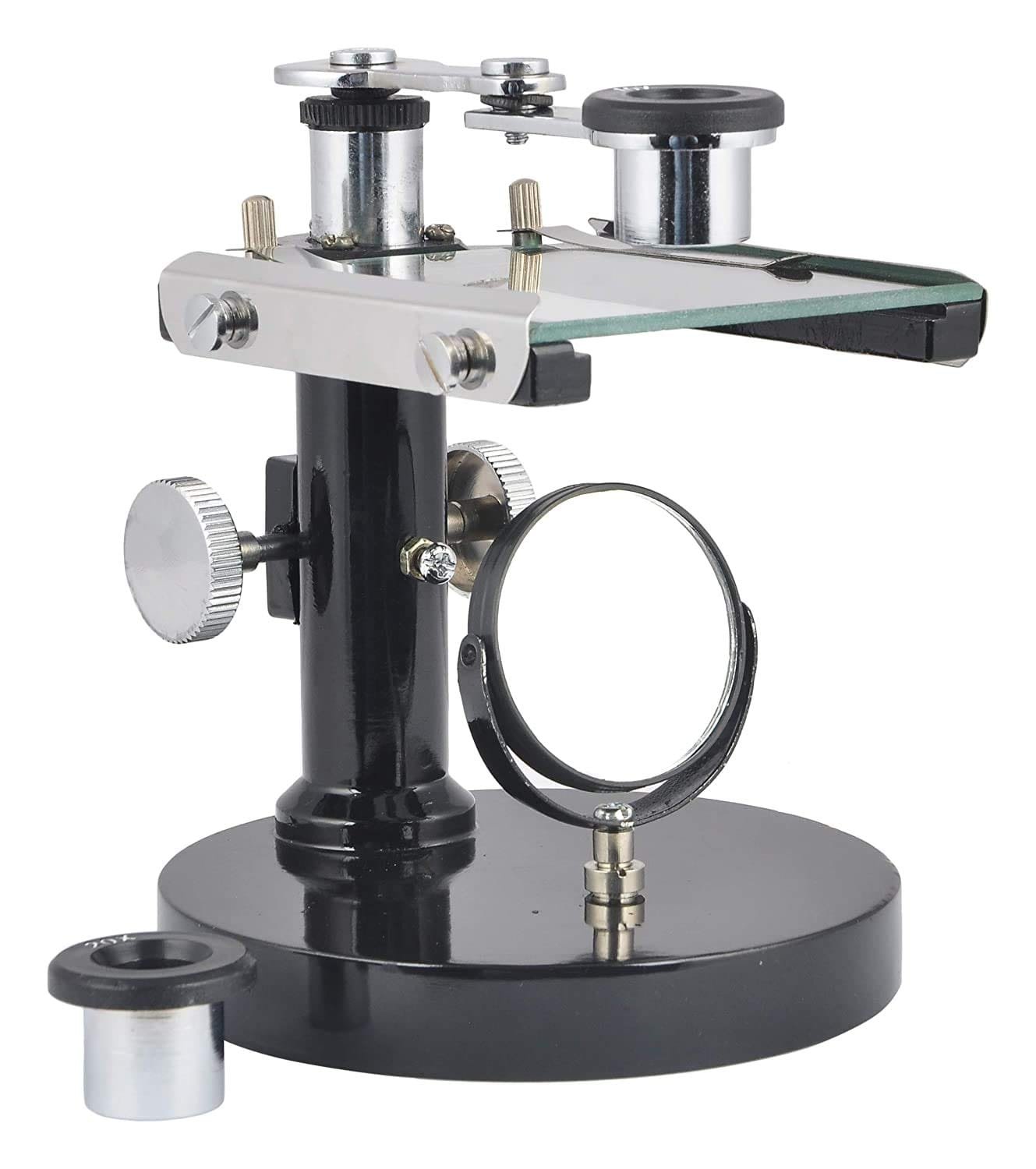

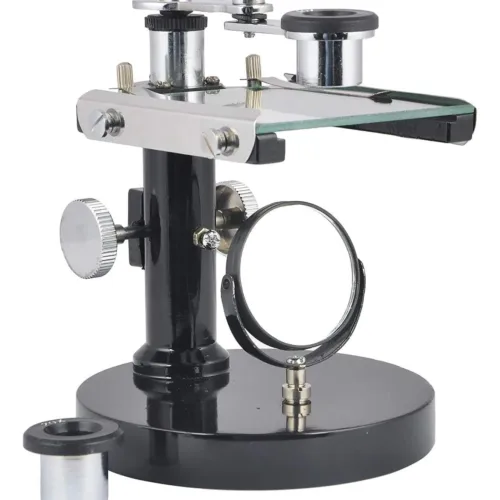

*Image for illustration purposes only.

Technical Specifications

• Brand & Supplier: Apex Labs, Varanasi, UP
• Type: Dissection / Stereo Microscope
• Magnification Range: 10x, 20x (Standard)
• Head Type: Monocular / Binocular (Model dependent)

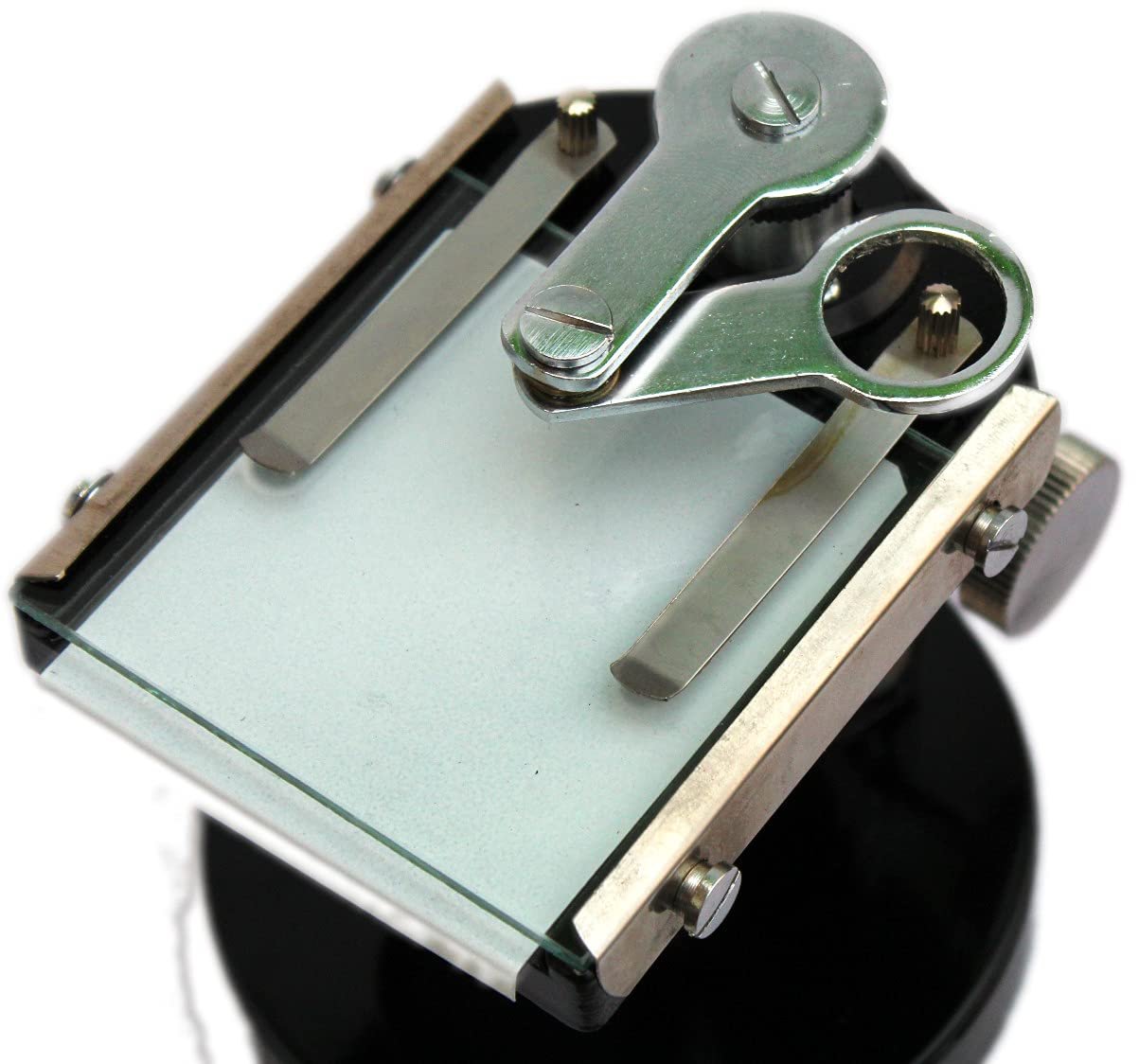

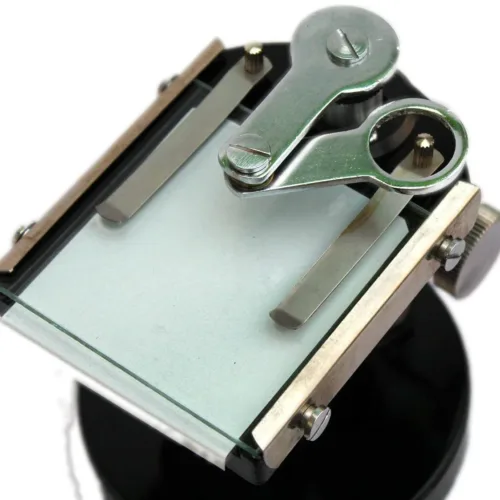

• Stage: Large 85mm x 75mm Glass/Opaque Plate
• Focusing: Rack & Pinion Coarse Adjustment
• Working Distance: ~50mm to 100mm
• Illumination: Sub-stage Plano-Concave Mirror or LED
• Body Material: Die-cast Metal with Chemical-Resistant Finish

Key Features

• 3D Stereoscopic View: Dual optical paths provide depth perception, making it easy to understand spatial relationships within a specimen.
• Long Working Distance: Ample space between the lens and the stage for easy manipulation of large or thick samples.
• Durable Construction: Heavy horseshoe-shaped base and metal stand ensure stability during high-precision tasks.
• Versatile Illumination: Equipped with a dual-sided mirror or integrated LED to capture both reflected and transmitted light.
• User-Friendly Focus: Smooth rack-and-pinion focusing mechanism designed for quick and intuitive operation by students.

Primary Applications

• Biology Education: Examining the external morphology of insects, worms, and small animals.
• Botany: Detailed study of flower parts, seed pods, leaf stomata, and root structures.
• Geology: Identifying minerals, rock textures, and micro-fossils.
• Forensic Science: Initial inspection of fibers, hair, and surface evidence.
• Quality Control: Inspection of small mechanical parts or printed circuit boards (PCBs).

Maintenance & Handling

• Dual-Hand Carry: Always carry the microscope with one hand on the arm and the other under the base.
• Lens Care: Clean optical surfaces only with specialized lens paper and fluid to prevent scratching.
• Dust Protection: Keep the microscope covered with the provided dust cover when not in use.
