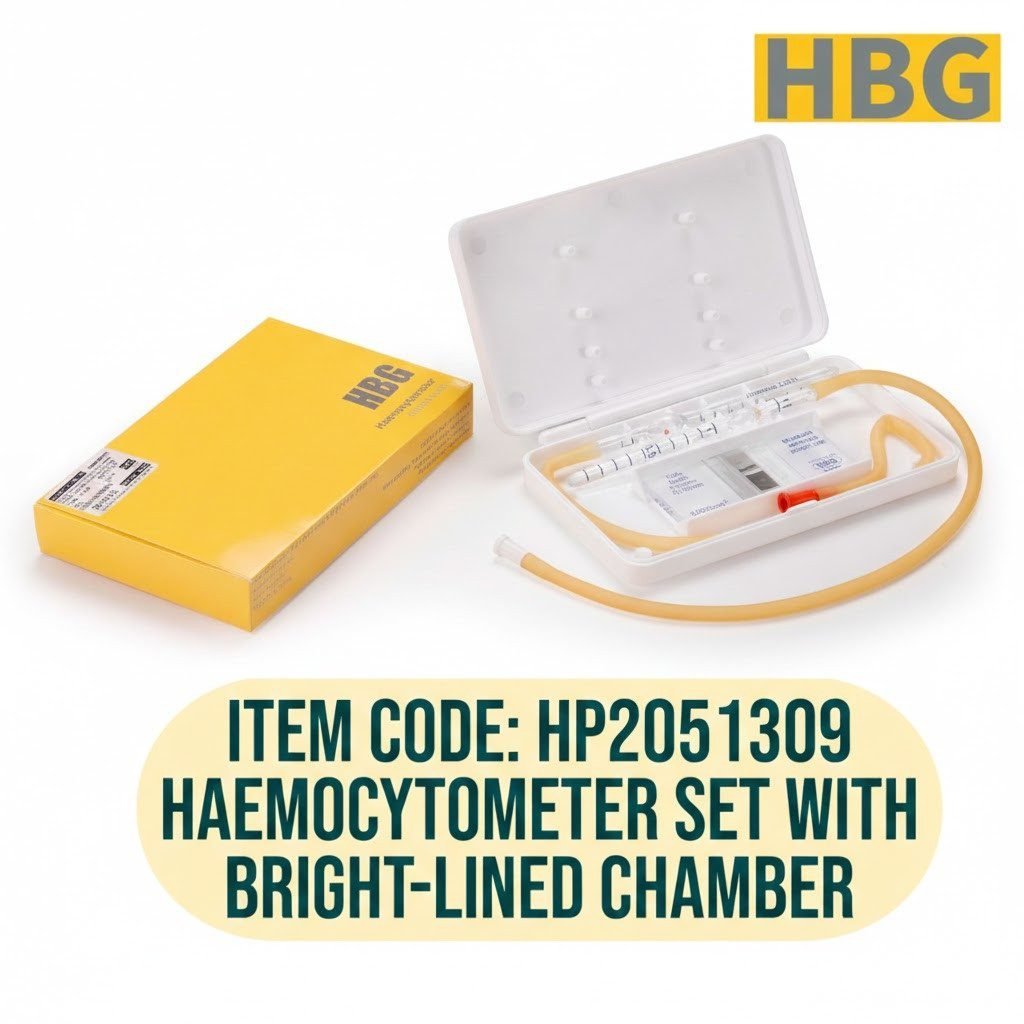

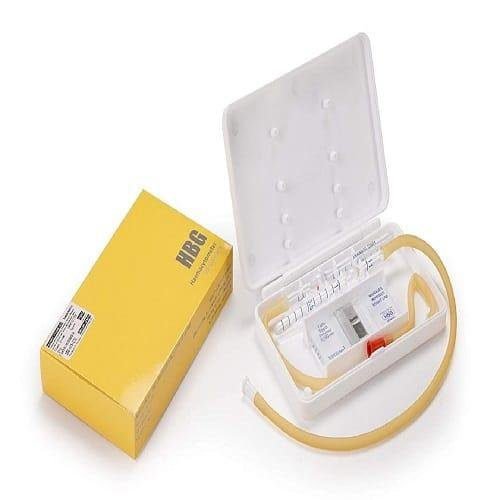

HBG Haemocytometer Set with Bright-Lined Chamber (Ref: HP2051309)

The Apex Labs HBG Haemocytometer Set with Bright-Lined Chamber (Ref: HP2051309) is a high-precision, diagnostic-grade manual cell counting system engineered for clinical hematology, microbiology, cell culture viability testing, and research laboratory workflows, supplied through Apex Labs. Manufactured in accordance with strict precision engineering standards (DIN ISO 12770 compliance), this complete kit features a premium Bright-Lined Neubauer Improved Counting Chamber crafted from optically clear glass. Unlike standard etched chambers, the Bright-Lined ruling is rhodium-metalized onto the glass surface. Under microscopic illumination, the grid lines appear brightly illuminated against a dark, contrasting background, dramatically reducing eye fatigue and maximizing counting accuracy for red blood cells (RBCs), white blood cells (WBCs), platelets, yeast cells, and sperm counts.

Product Specification & Procurement

Technical Specifications

• Brand & Part Number: HBG (Ref No: HP2051309) | Supplied by Apex Labs
• Grid Ruling Standard: Neubauer Improved Bright-Lined (Metalized Rhodium Coating)
• Chamber Depth: $0.1\text{ mm} \pm 0.002\text{ mm}$
• Grid Division Metrics: $3\text{ mm} \times 3\text{ mm}$ ($9\text{ mm}^2$ total grid area); Smallest square $0.0025\text{ mm}^2$
• Pipettes Included: 1× Thoma RBC Pipette (Red Bead), 1× Thoma WBC Pipette (White Bead)
• Cover Glass Specification: 2× Optically Ground Hemocytometer Coverslips ($20 \times 26\text{ mm}$, $0.4\text{ mm}$ thickness)
• Packaging & Case: Cushioned Plastic Hard Case with Tubing & Mouthpieces

Bulk Institutional Diagnostic Supply

Technical Performance & Optical Highlights

• High-Contrast Metalized Grid: Rhodium-coated grid lines appear brightly illuminated under microscope optics, drastically improving line visibility and reducing eye strain during high-throughput counting.
• Precision Volumetric Depth: Precision-ground glass surfaces maintain an exact $0.1\text{ mm}$ liquid depth when coupled with specialized hemocytometer cover glasses, guaranteeing reproducible volumetric cell calculations.
• Thoma Calibrated Glassware: Precision-bore glass pipettes with color-coded internal mixing beads ensure exact sample dilution ratios for cell suspensions and blood components.
• DIN ISO Standard Compliance: Manufactured under strict optical quality controls to meet international hematology standards.

Primary Sector Applications

• Clinical Pathology & Hematology: Manual quantification of total erythrocytes (RBCs), leukocytes (WBCs), and platelets.
• Biotechnology & Cell Culture: Yeast cell concentration, microalgae tracking, and mammalian cell density viability assays (Trypan Blue method).
• Andrology & Veterinary Diagnostics: Sperm density analysis, motility profiling, and animal blood cell counts.
• Medical Colleges & Teaching Labs: Essential pedagogical equipment for undergraduate medical, dental, and life science instruction.
