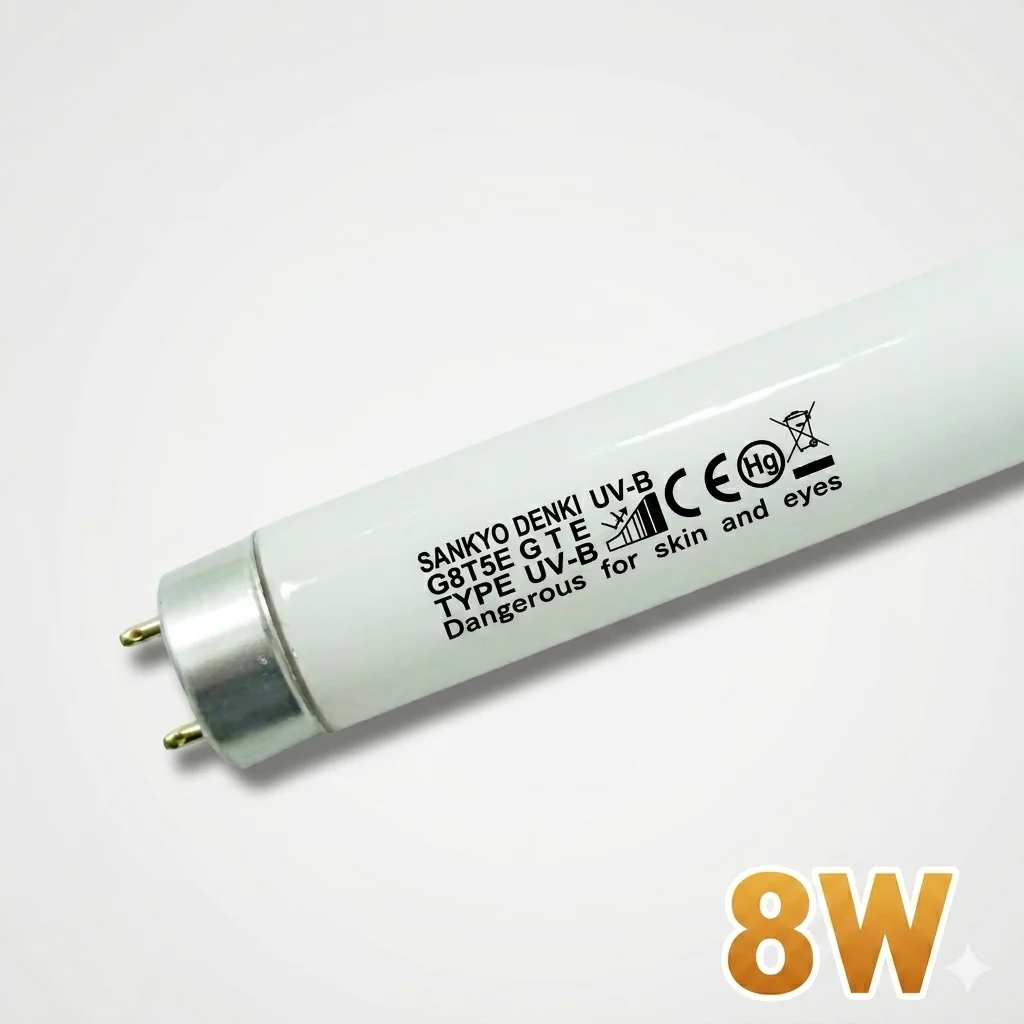

SANKYO DENKI G8T5E 8W UVB (312NM) ULTRAVIOLET TUBE LIGHT
Quick Overview
The original Sankyo Denki G8T5E 8W UVB (312nm) Ultraviolet Tube Light is a premium Japanese-engineered 8W T5 linear UV tube (G5 base, 288mm length) designed for 312nm narrowband UVB radiation. Engineered for laboratory transilluminators, forensic analysis, and scientific research. Available from Apex Labs with full GST tax billing and institutional GeM portal procurement.
Note: Images for illustration purposes only. Actual color, design, or packaging may vary based on manufacturing batches.
The Sankyo Denki G8T5E 8W UVB Tube Light is a premium, Japanese-engineered 8-watt ultraviolet linear source designed specifically to emit concentrated narrowband UVB radiation at a precise peak wavelength of 312nm.
Renowned for its exceptional spectral reliability and robust construction quality, this G5-based linear T5 tube stands as the industry standard for specialized institutional applications ranging from medical phototherapy to forensic evaluation and advanced scientific research. Whether replacing a critical component in a laboratory electrophoresis transilluminator or executing servicing on dermatological medical equipment, the original Sankyo Denki G8T5E ensures highly stable UV intensity and an extended, low-solarization operational lifespan.
Explore our full line of specialized laboratory lighting and diagnostic lamps in the electronic instruments section.
B2B Supply & Institutional GeM Portal Procurement: Apex Labs supplies authentic, original imported components complete with comprehensive batch certificates and formal commercial GST invoices for reliable Input Tax Credit (ITC) tracking.
For research institutes, forensic science laboratories, central universities, and healthcare facilities, we provide streamlined bulk supply channels, custom scheduling, and seamless bidding support on the official Government e-Marketplace (GeM) portal.
Product Specification & Direct Ordering
Sankyo Denki G8T5E 8W UVB (312nm) Ultraviolet Tube Light: Original Japanese-made 8W 312nm T5 UV tube lamp with G5 bi-pin base for gel transilluminators, material testing, and research systems.
Technical Specifications
| Engineering Parameter | Performance Specification Standard |
|---|---|
| Manufacturer Brand | Sankyo Denki (Made in Japan) |
| Model Assignment | G8T5E |
| Electrical Power Rating | 8 Watts |
| Peak Wave Emissions | 312nm Narrowband UVB radiation field |
| Base Connector Layout | G5 Miniature Bi-Pin Base style |
| Bulb Geometry Profile | T5 Linear Tube Factor (Slimline architecture) |
| Total Length Dimension | 288 mm (approx. 11.3 inches) |
| Tube Diameter Size | 15.5 mm external glass boundary |
| Average Operational Life | 3,000 to 4,000 Rated Hours (under standard electrical ballasting) |
| Authorized Supplier | Apex Labs (Varanasi, UP) |
Core Engineering Features
- Targeted 312nm Monochromatic Peak: Precision-tuned to maximize chemical and cellular excitation responses without generating unsafe, stray UV leakage bands.
- Premium Japanese Manufacturing: Produced under strict ISO tolerances by Sankyo Denki, promising highly regular gas pressure densities and long-term electrode durability.
- Ultra-Slim T5 Form Factor: Compact 15.5mm footprint provides seamless structural integration into space-constrained hoods, desktop visualizers, and handheld field devices.
- Eco-Conscious Low-Mercury Dosage: Crafted with minimal chemical internal volumes to comply with international environmental criteria while maximizing radiant efficiency.
- Advanced Solarization Defense: Specially treated internal quartz coatings limit glass darkening over time, maintaining a highly uniform UV output baseline across the tube’s lifespan.
Primary Laboratory & Industrial Applications
- Laboratory Electrophoresis: Excitation and high-contrast visualization of stained DNA/RNA bands and advanced protein analytics inside transilluminator darkrooms.
- Forensic Science & Investigations: Sharp detection of concealed biological fluids, latent biochemical traces, and structural changes on documents.
- Medical & Dermatology Systems: Integrated as a core narrowband source within controlled phototherapy instruments for target skin assessments (always deploy under medical guidance).
- Industrial Materials Auditing: Precision curing of specialized industrial resins, polymers, and accelerated UV resistance simulations.
- Mineralogy & Gemology: Excitation light source for inspecting the characteristic fluorescence of natural crystals, geological minerals, and gemstones.
Sankyo Denki G8T5E FAQ
Q: What is the peak wavelength emission of the Sankyo Denki G8T5E tube?
A: It emits narrowband UVB radiation with a precise peak wavelength of 312nm, optimal for DNA/RNA transillumination.
Q: What are the base type and total physical length of this 8W UV light?
A: The tube uses a G5 miniature bi-pin base in a T5 profile, measuring 288 mm (approx. 11.3 inches) in total length and 15.5 mm in diameter.
Q: Can government institutions and research facilities procure this via GeM?
A: Yes, Apex Labs offers full commercial GST invoices for ITC tracking and supports procurement through authorized Government e-Marketplace (GeM) listing lines.
