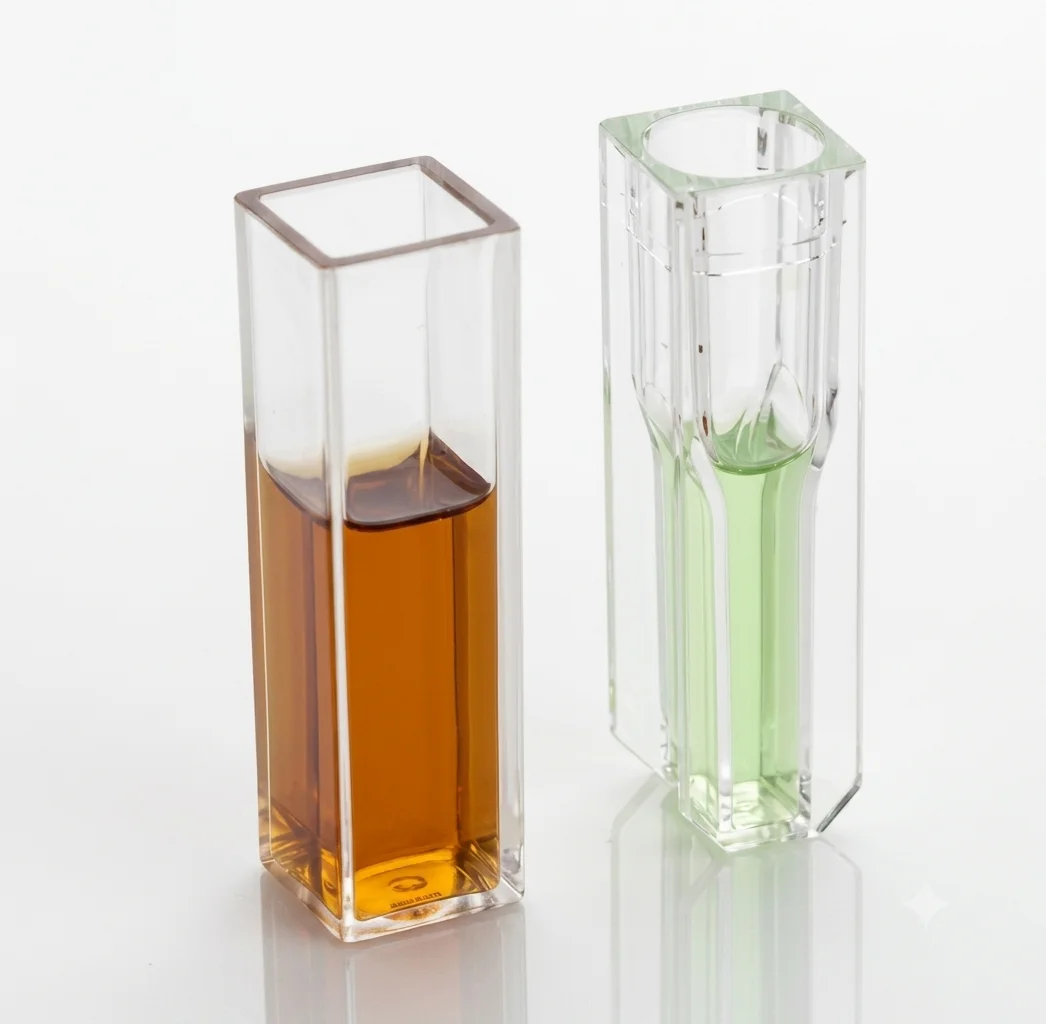

Quartz Cuvette LBQ-204 (10mm / 3.5ml) – Lark® (Type B1) Macro Fluorescence Cuvette with Lid

The LARK® Quartz Cuvette LBQ-204 (Type B1) supplied by Apex Labs is a premium optical cell specifically designed for high-precision fluorometry and fluorescence spectroscopy applications. As a macro fluorescence cell, it features a standard 10 mm optical path length with a 3.5 mL nominal sample capacity. Unlike standard UV-Vis spectrophotometer cells that feature two transparent and two frosted walls, the Quartz Cuvette LBQ-204 fluorescence cell is engineered with 4 optically polished clear windows plus an optically clear base, allowing excitation and emission light beams to pass freely at right angles without internal scatter or reflection loss. Each unit comes complete with a precision-fit PTFE lid to prevent cross-contamination and volatile solvent evaporation.

Product Specification & Direct Ordering

Technical Specifications

• Product Brand: LARK®
• Model Number: LBQ-204 (Type B1 Series)
• Cell Type: Macro Fluorescence Cell (Quartz Cuvette LBQ-204)
• Optical Path Length: 10 mm
• Sample Volume: 3.5 mL (3500 µL)
• Polished Windows: 4 Side Windows + Base Optically Polished
• Material Construction: Optical Fused UV Synthetic Quartz
• Spectral Range: 190 nm – 2500 nm (Deep UV to NIR)
• Outer Dimensions: 45 mm (H) x 12.5 mm (W) x 12.5 mm (L)
• Closure System: Precision PTFE Slip-On Lid
• Joint Technology: Fire-Fused Construction (Solvent Resistant)
• Supplier: Apex Labs (Varanasi, UP)

Performance Highlights

• 4-Window Polished Optical Geometry: Designed specifically for 90-degree right-angle excitation/emission collection in fluorometers.
• Deep UV Transmittance: High-grade UV synthetic quartz delivers exceptional optical transmission down to 190 nm with minimal background fluorescence.
• Fire-Fused Durability: Assembled without adhesive bonding resins to withstand strong acids, organic solvents, and thermal stress.
• Universal Holder Compatibility: Standard 12.5 x 12.5 mm exterior profile fits virtually all standard fluorometers and spectrophotometer sample holders.

Primary Sector Applications

• Fluorometry & Spectroscopy: High-sensitivity quantitative detection of fluorophores and fluorescent dye markers.
• Biochemical & Protein Assays: Protein binding studies, enzyme kinetics, and nucleic acid concentration measurements.
• Environmental Analysis: Detection of trace pollutants, aromatic hydrocarbons, and micro-contaminants in aquatic samples using the Quartz Cuvette LBQ-204.
• Pharmaceutical QC: Quality control screening of light-emitting and fluorescent active drug compounds.
