5.25-Inch Optical Glass Tintometer Cell — Apex Labs

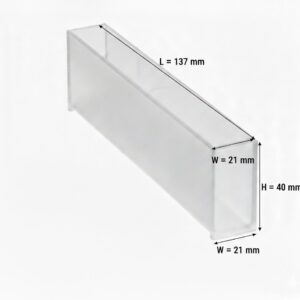

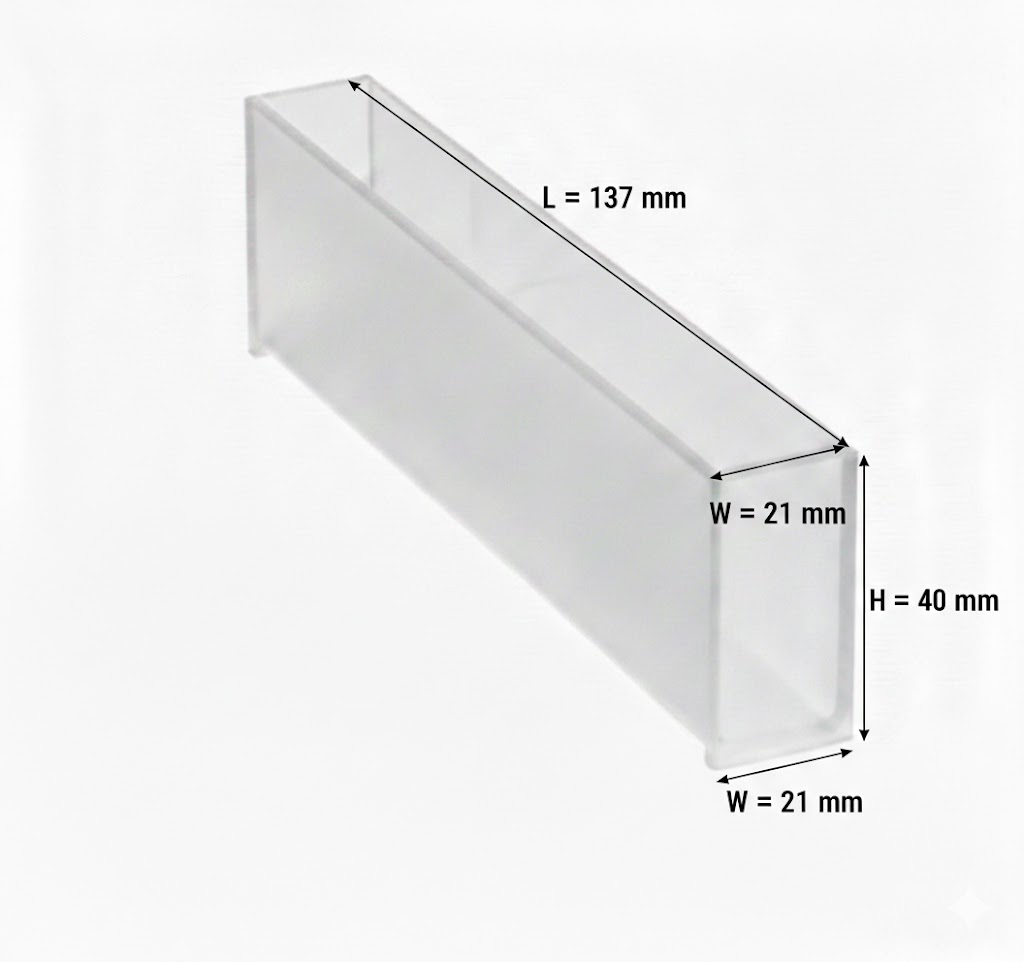

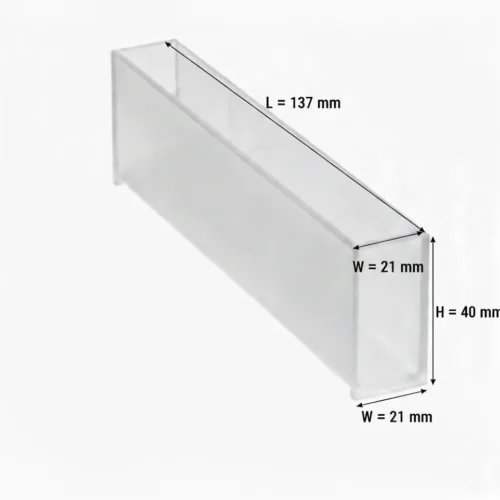

Upgrade your laboratory accuracy with our 5.25-inch Optical Glass Tintometer Cell. This high-precision rectangular cell is designed for color measurement in the edible oil, chemical, and liquid processing industries. Engineered for wide-band spectral analysis ranging from 340 nm to 2500 nm, it is ideal for the Wesson color scale and Lovibond RYBN color grading. Built with precise dimensions (L = 137 mm, W = 21 mm, H = 40 mm), it offers a seamless fit for standard Lovibond tintometer instruments, ensuring bubble-free, clear light paths for reliable oil and chemical testing.

*Image for illustration purposes only. Actual optical glass finish or batch identification markings may vary slightly.

Technical Specifications

• Brand & Supplier: Apex Labs, Varanasi, UP (Made in India)
• Compatibility: Lovibond® PFXi-880, 995, 195 & Model F
• Spectral Range: 340 nm – 2500 nm (Visible to Near-IR)

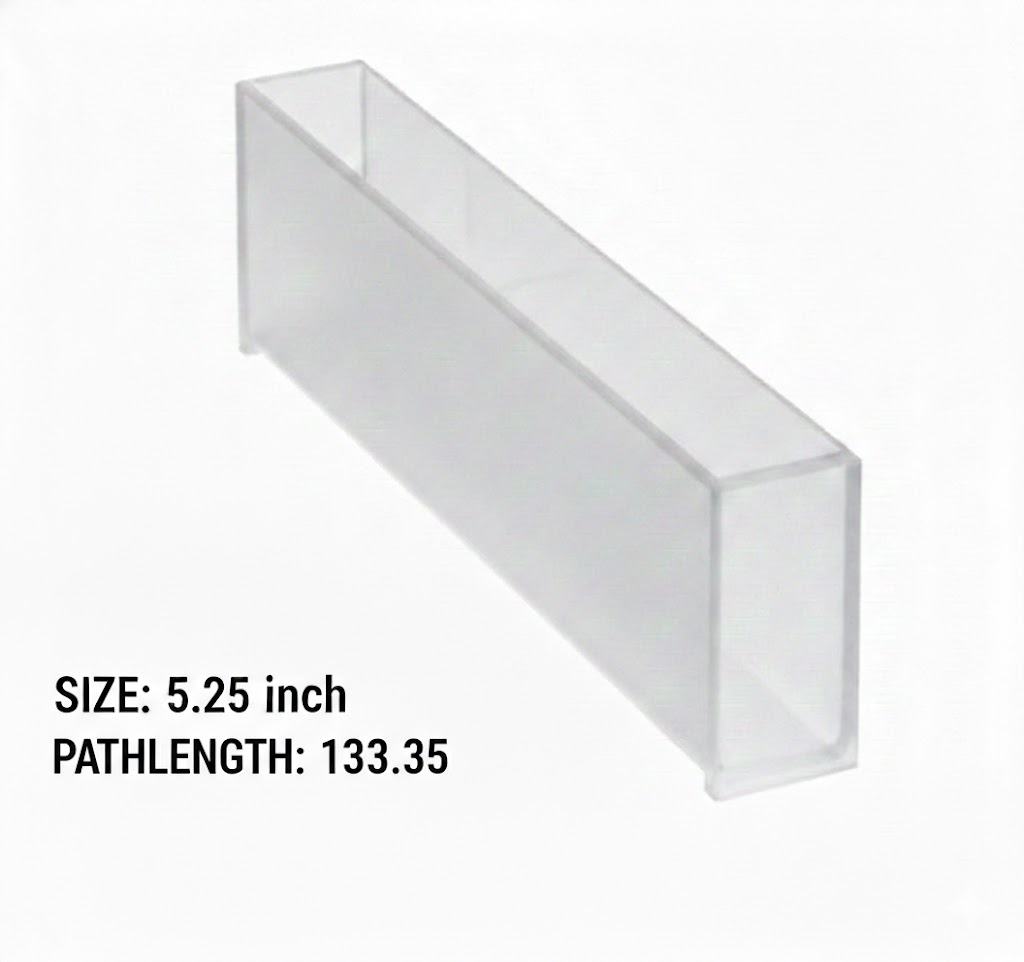

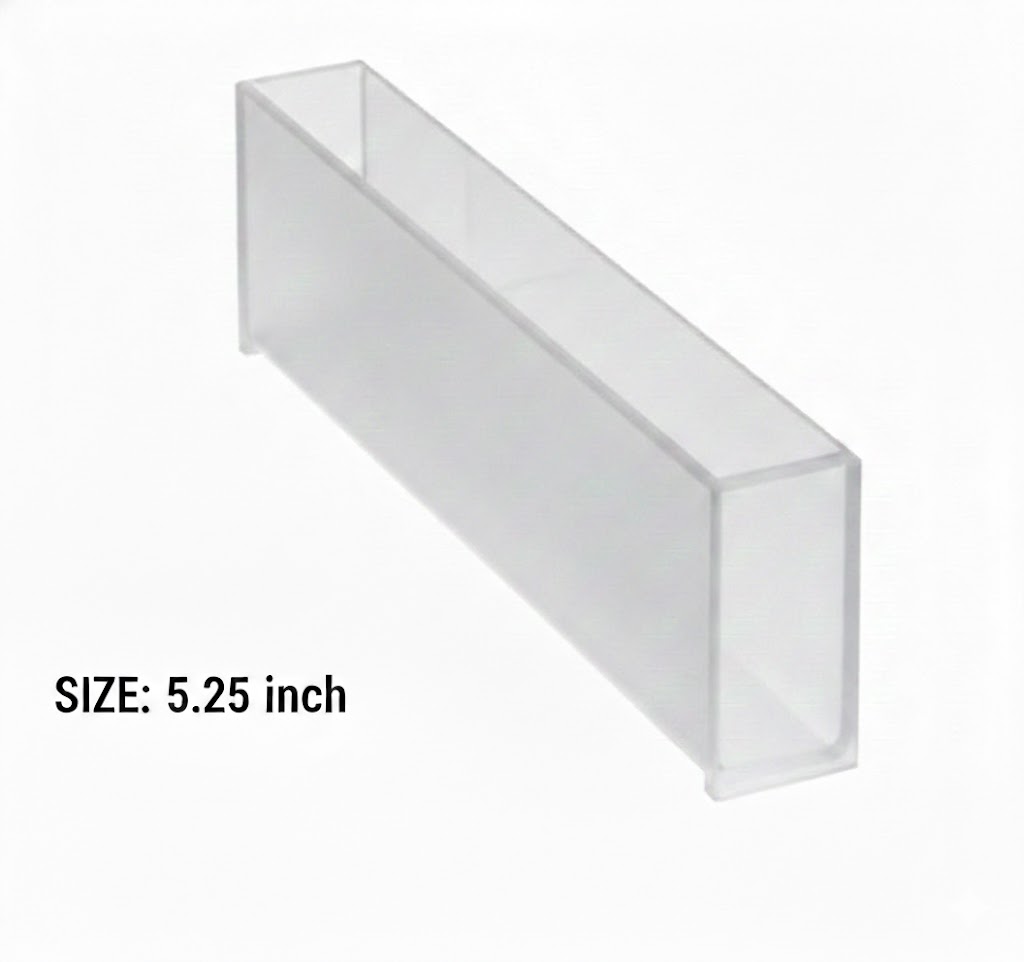

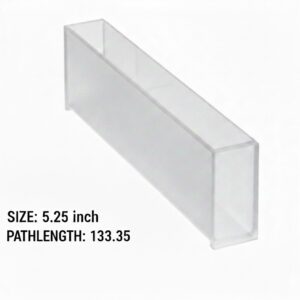

• Nominal Path Length: 5.25 inches (133.35 mm)
• External Length (L): 137 mm
• External Width (W): 21 mm
• External Height (H): 40 mm
• Material Composition: High-Quality Optical Glass

Key Features

• Wide-Band Spectral Analysis: Optimized for transmission accuracy across a broad 340 nm to 2500 nm wavelength range.
• Precision Optical Construction: Manufactured from premium optical glass with flat, parallel windows to ensure bubble-free light paths.
• Exact Instrument Fit: Rigorously dimensioned to match standard Lovibond tintometer sample chambers for consistent positioning.
• Chemical Resistance: Designed to withstand exposure to organic solvents, edible oils, and testing reagents during routine grading.

Applications

• Edible Oil Processing: Routine color grading of vegetable oils, fats, and lards using the Wesson and Lovibond scales.
• Chemical & Petroleum Testing: Measuring light transmission and color index of liquid chemicals and petroleum products.
• Industrial Quality Control: Ensuring batch-to-batch color uniformity in commercial manufacturing plants.
