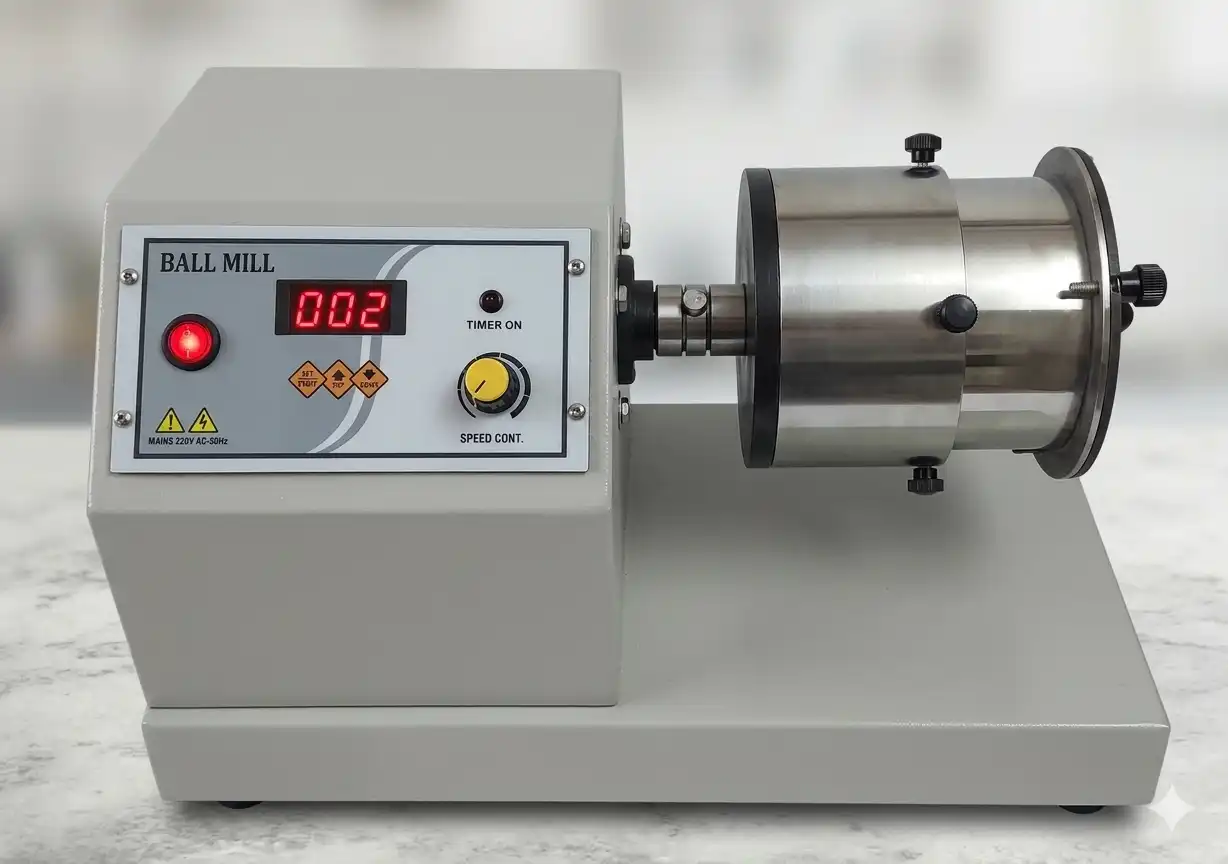

Digital Heavy Ball Mill with Programmable Timer

The Digital Heavy Ball Mill is a robust grinding solution for laboratories requiring precise control over milling duration and speed. This advanced model features a digital interface, allowing researchers to automate the grinding process for materials like chemicals, pharmaceuticals, and minerals to achieve a specific powder mesh.

Technical Features & Components

• Capacity Options: Available in three standard sizes: 1 KG, 2 KG, and 3 KG.
• Digital Timer Interface: Features a 3-digit LED display with “UP”, “DOWN”, and “SET/START” keys for precise time management.
• Variable Speed Control: Equipped with a dedicated “SPEED CONT.” knob to adjust motor RPM based on material requirements.
• Durable Grinding Chamber: Includes a high-grade Stainless Steel (SS) mill pan designed for heavy-duty use.
• Complete Accessory Kit: Supplied with grinding balls of different sizes to facilitate effective impact and attrition.

Standard Operating Procedure

1. Preparation: Place your material and the provided grinding balls into the SS pan and tighten the lid securely.
2. Mounting: Secure the SS pan into the heavy-duty Mill Holder.
3. Power On: Press the red button to activate the machine; the mains indicator will glow.
4. Setting the Timer: Press the UP KEY to set your required duration, then press the SET/START key to begin the countdown. The LED will blink continuously while the timer is active.
5. Adjusting Speed: Rotate the speed controller on the front panel to reach the desired motor intensity.
6. Completion: Once the timer expires or the desired mesh is reached, stop the motor, retrieve the powder, and thoroughly clean and dry the SS pan and balls.
